GENPACS - ISUZU

Powered By

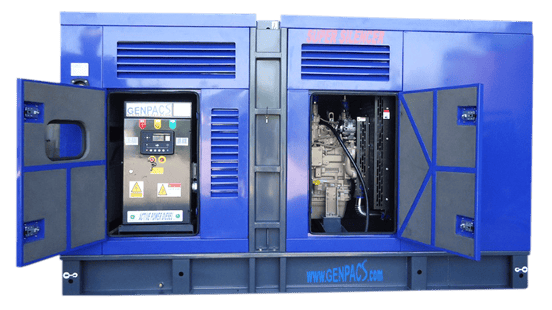

SOUNDPROOF RESIDENTIAL APPLICATION RANGE

Prime Power at 50Hz, 1500 RPM: 15KVA to 60KVA

Standby Power at 50Hz, 1500 RPM: 16.5KVA to 65KVA

Compact Design

Low Noise: ≤ 65 dB(A) ± 5 at 7m

Low Fuel Consumption: < 0.27 l/kWh

GENERAL

ENGINE: ORIGINAL ISUZU BRAND 493 Seri of JAPAN

Diesel 4-cycle, 4-Cylinder, GAC Electric governor, Electric Start c/w battery charging alternator.

Bosh common rail fuel injection system ensure to low fuel consumption.

Water Cooling by tropical radiator and self-driven fan.

Exhaust Emission: EU Standard Stage II

Easy Replaceable Filters (Oil, Fuel and Air), easy maintenance.

ALTERNATOR: ORIGINAL LEROYSOMER BRAND TAL 042 Seri – MADE IN EC/France

World First Class alternator.

Synchronous, Brushless, IP23, Insulation Class H.

Self auto Excited, Voltage Control by AVR with variation maximum ± 1%. Other Alternator on request.

STANDARD ACCESSORIES:

Battery with cable and Rack.

Fuel Day Tank on Base Frame with Anti-Vibration Rubbers.

Output ABB/Mitsubishi MCCB.

Residential Silencer, Technical Documents.

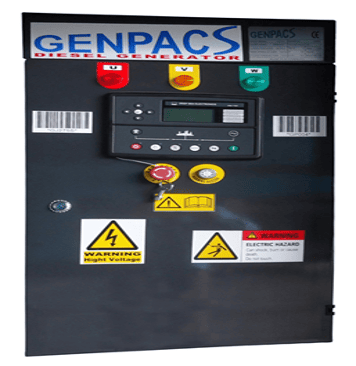

CONTROL PANEL: GENPACS-4520MKII – CE MARK- POWERED BY DEEPSEA DSE 4520MKII CONTROLLER UNIT.

FEATURES:

Controlling Generator, Auto Mains Failure (AMF) and ready to connect to any ATS.
Remote Control Available.
Indication and Metering by LCD.
Recording Fault, Starts.
Emergency Stop Button on Control Panel and on Soundproof.
Generator Metering: 3-phase Voltage, 3-phase Current, Frequency, Rotation, Oil Pressure, Water Temperature, Battery Voltage, Run-hour, Total Kw, Total Kwh, Power Factor.
Mains Metering: Frequency, Voltage.

ALARM AND PROTECTION:

Alarm and Shut-down: High Water Temperature, Low Oil Pressure, Over or Under Frequency/ Rotation, Over/Under AC Voltage, Over Current, Over Power, Short Circuit, Emergency Stop Button Pressed, Over Cranking.
Alarm: Charging Failure, Over/Under Battery Voltage.

TECHNICAL SPECIFICATION

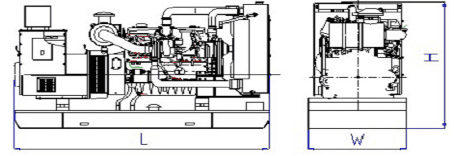

GENPACS MODEL	ISUZU ENGINE LEROYSOMER ALTERNATOR MODEL	Aspiration	ELECTRICAL OPERATING POWER 50Hz, 1500 RPM 380V/220V				Fuel Consumption (l/h)		DIMENSION (mm) Open Type Sound Proof Type (Recommended)			WEIGHT (kg) Open type Sound Proof Type
			STANDBY		PRIME		75% load	100% load	L	W	H
			KVA	KW	KVA	KW	75% load	100% load	L	W	H

GI16.5S	JE493G TAL 040D	N	16.5	13.2	15	12	3.2	4	1500 2000	600 900	1200 1400	400 480
GI27.5S	JE493G TAL042A	N	27.5	22	25	20	4.6	6	1600 2100	600 900	1200 1400	480 530
GI33S	JE493GT TAL042C	T	33	26	30	24	5	6.6	1600 2100	600 900	1200 1400	450 600
GIZ44S	JE493GTA TAL 042E	TW	44	35.2	40	32	6.5	9	1600 2100	600 900	1200 1400	480 630
GIZ50S	JE493GTB TAL 042F	TAA	50	40	45	36	7.1	9.6	1600 2100	600 900	1200 1400	500 630
GIZ55S	JE493GTBT TAL 042G	TAA	55	44	50	40	7.8	10.6	1600 2100	600 900	1200 1400	500 650
GIZ66S	JE493GTC TAL 042H	TAA	65	44	60	48	10.2	13	1600 2200	600 900	1200 1400	550 700

NOTE:

♦ N: Natural Aspiration, T: Turbocharged, TW: Turbocharged -water air inter cooler, TAA: Turbocharged air- air intercooler

♦ Output Power is in accordance with ISO8528:2005 at temperature up to 45ºC, humidity up to 99%.

♦ Standby Power is maximum power available for the duration of any power outage at variable load. No overload is allowed.

♦ Prime Power is available for continuous operation at variable load. The average output power during 24h period of operation must not exceed 80% of the Prime Power. 10% over load is allowed in 1h with every 12h of operation

ADVANTAGED FEATURES
The quality of GENPACSgenerator powered by ISUZU is guaranteed as the highest international standard by combination between a well-know engine brand name (ISUZU-JAPAN) and world fist class alternator (LEROYSOMER- FRANCE). GENPACSgenerator powered by ISUZU is can equipped by soundproof for low noise level: ≤ 80 dB(A) ±5 at 1m distance, ≤ 65 dB(A) ± 5 at 7m distance

OPTIONAL FEATURES

Auto transfer Switch 50-100A, Road trailer supplied upon request under Genpacs Brand.

Generator is tropicalized for operation on tropical conditions.

Generator is available tested at 110% full load before delivery under ISO8528 and DIN6271.

Independent Test and Inspection are available on request.

Quality Product is controlled by ISO 9001:2015.

GENPACS GENERATOR

Made in EC/France

Email: contact@genpacs.com

www.genpacs.com

GENPACS-ISUZU Line 2023 1^st Iss - The Specification may be changed without prior notice upon improvement quality.
